Haikang TB4117 module runs to debug mode
Web page configuration is possible in debug mode regardless of whether the module is in NCM or UVC mode. That is, if the module is in UVC mode, you must be in debug mode to change the module back to NCM mode.

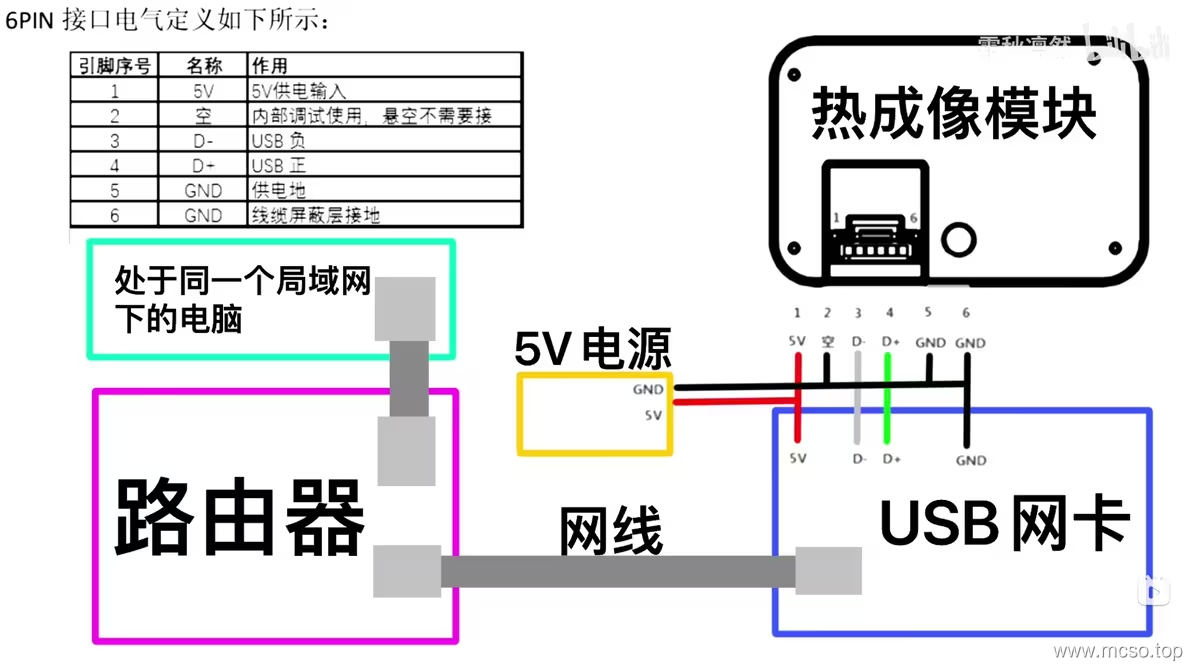

The wiring of the module can refer tutorialHere is a copy of the wiring diagram:
Attention here! Pin 2 must be connected to GND to enter debug mode!
And after the modification is completed, pin 2 must be left empty, that is, nothing will be answered!
After connecting according to the figure, the power can be supplied. It takes about 30s for the module to start completely.
Search for the module's IP address
Need to install first Haikang equipment network search assistant. After installation, open the software (note that the module and the debugging computer must be under the same LAN), and the IP address of the module can be searched:
We open the IP address of the module, I .e. http://192.168.1.64/, enter the login interface:
Enter the user name and password (if not set, the default is to prompt to create a new password), log in:
Modify Module Run Mode

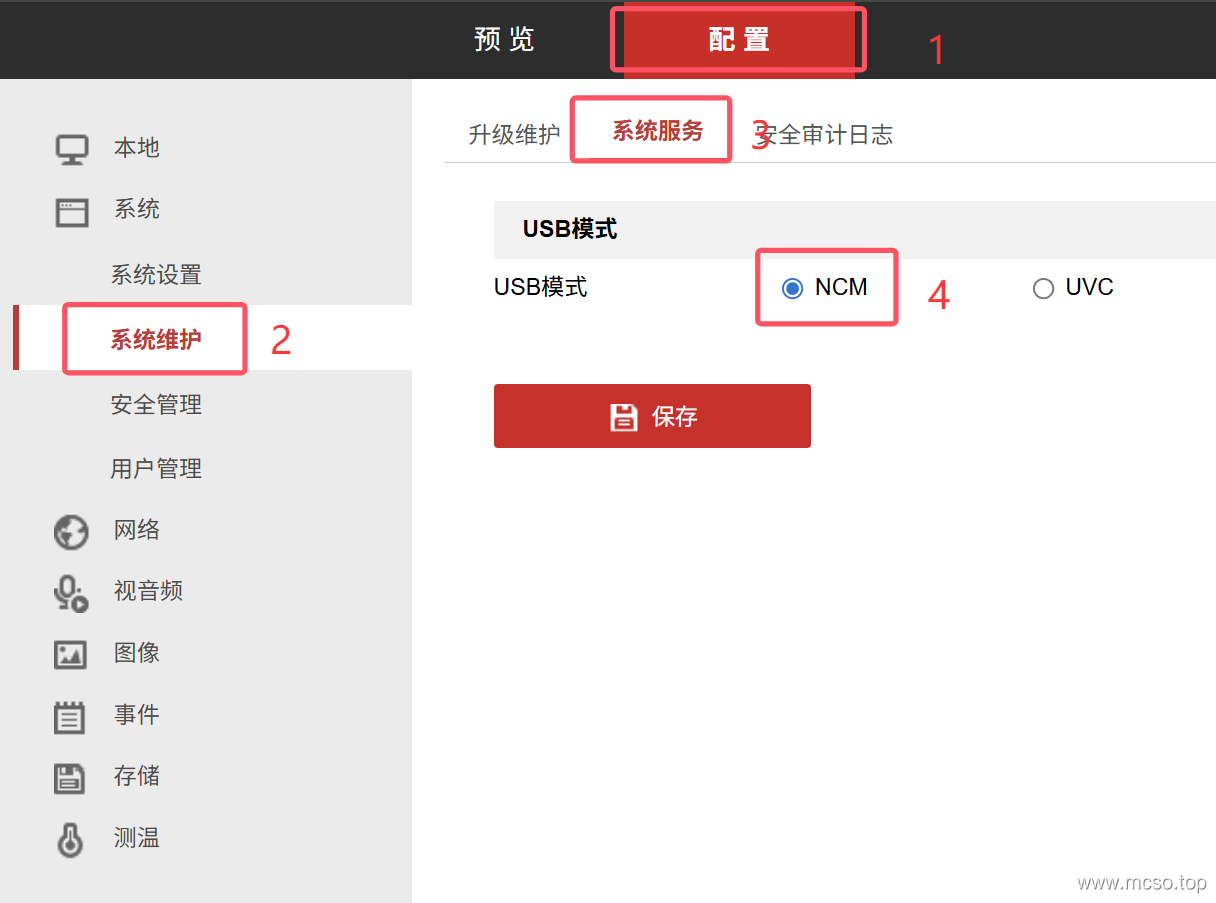

Find Configuration-System Maintenance-System Service-NCM The mode can be modified back to NCM mode.
